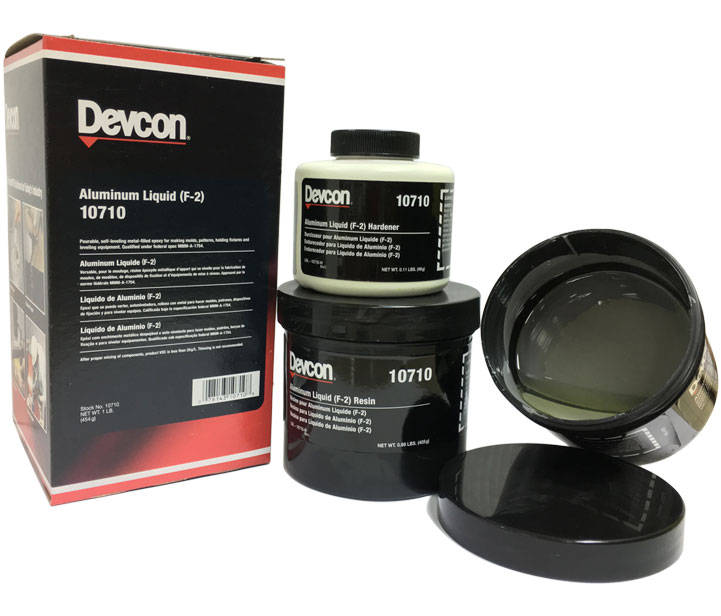

Aluminum Liquid F-2: P/N 10710 (454 gr.) .045 m @ .025 in (6.3 mm.) Thickness

MOLD, CASTING & LIQUID EPOXY COMPOUNDS STEEL AND ALUMINUM CASTING

Use: Aluminum Filled Liquid Epoxy for making holding fixtures, forming dies & molded parts. Self-Leveling. Use for leveling fixtures. Once hardened, material can be drilled, tapped, and machined. Can be machined to metallic finish.

Drying Color: Aluminum Liquid. Brush a thin coat on the mold substrate, then pour.
Working Time: 20 minutes.
De-Molding Time: 10 hours.
Full Cure: 16 hours.
Mix Ratio by Weight: 9:1
Working Temperature: Dry: 105 °C , Wet: 50 °C
Adhesive Tensile Shear Strength: 2,700 PSI. (18.62 MPa)
Compressive Strength: 9,820 PSI. (67.70 MPa)
Hardness: 85 Shore D
